Create a Simple Rotation with Monocle Scans in Blender

Last Updated: 2025.Feb

Project Overview

In this guide, we’ll walk you through how to take Monocle Scans, import them to Blender, and create a simple rotation.

Check out the video and follow along with this guide!

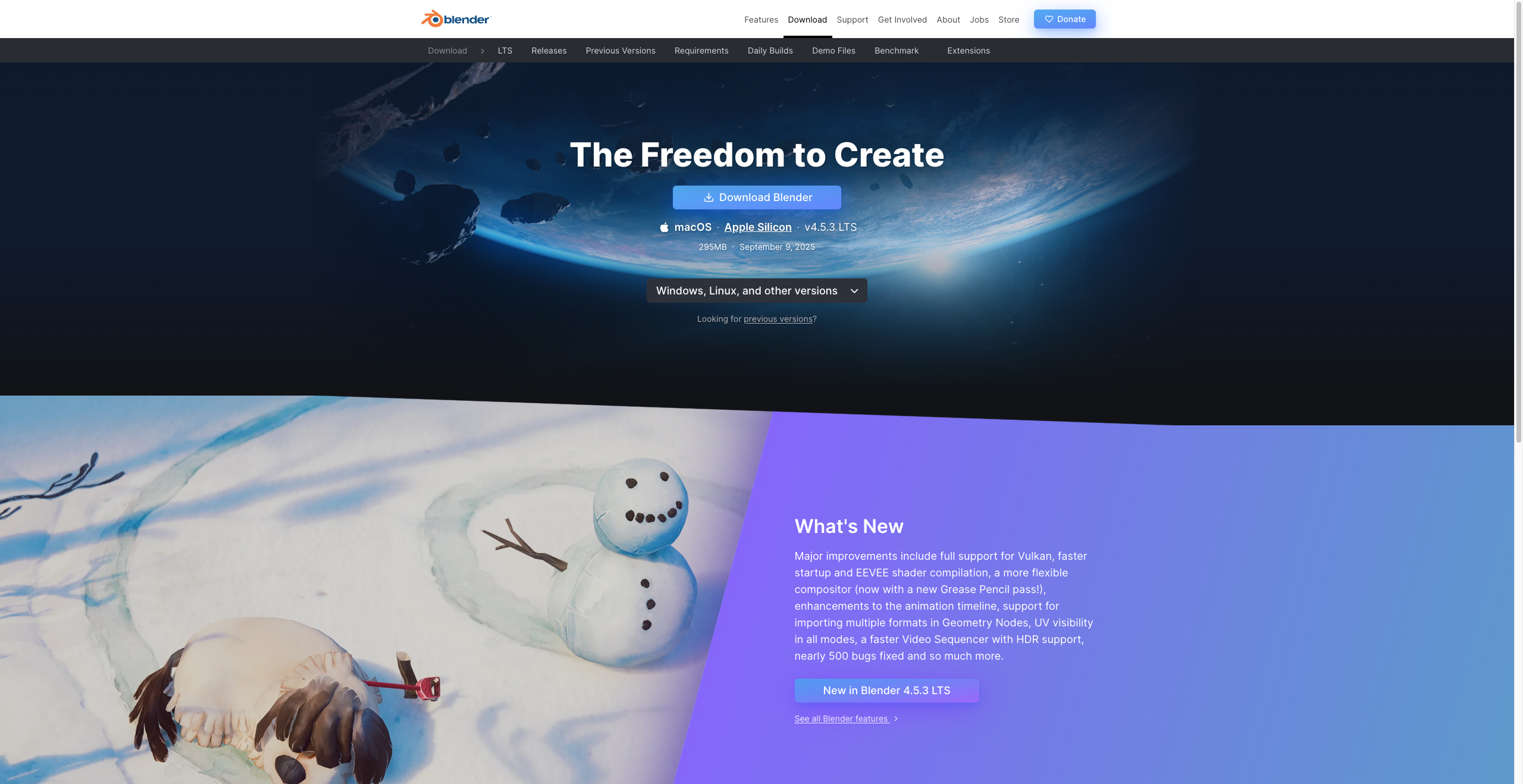

What is Blender?

Blender is a free and open-source 3D creation suite that covers the entire workflow: modeling, sculpting, texturing, rigging, animation, rendering, compositing, and even video editing.

It has a huge community that provides tutorials, plugins, and support. Because it’s powerful yet completely free, Blender is widely used in industries like film, game development, architecture, and product design, as well as by hobbyists and students around the world.

Tutorial: How to take your scans, import them into Blender, and create a simple rotation

The video content is explained step-by-step with accompanying images.

Step 1: Go to the Monocle gallery on your computer and download GLB file

Go to Monocle Galley on your computer and log in
Select the model you want to use
Press the GLB file button to download

Another Option: Open the Monocle Prime app and go to the Monocle Gallery

Open the Monocle Prime app
Select the model you want to use
Tap the menu button on the top right corner
Hit 'Open in Monocle Galley'
Log in and click the GLB file button to download
Transfer the file from your phone to the computer using Airdrop, Email and any other methods

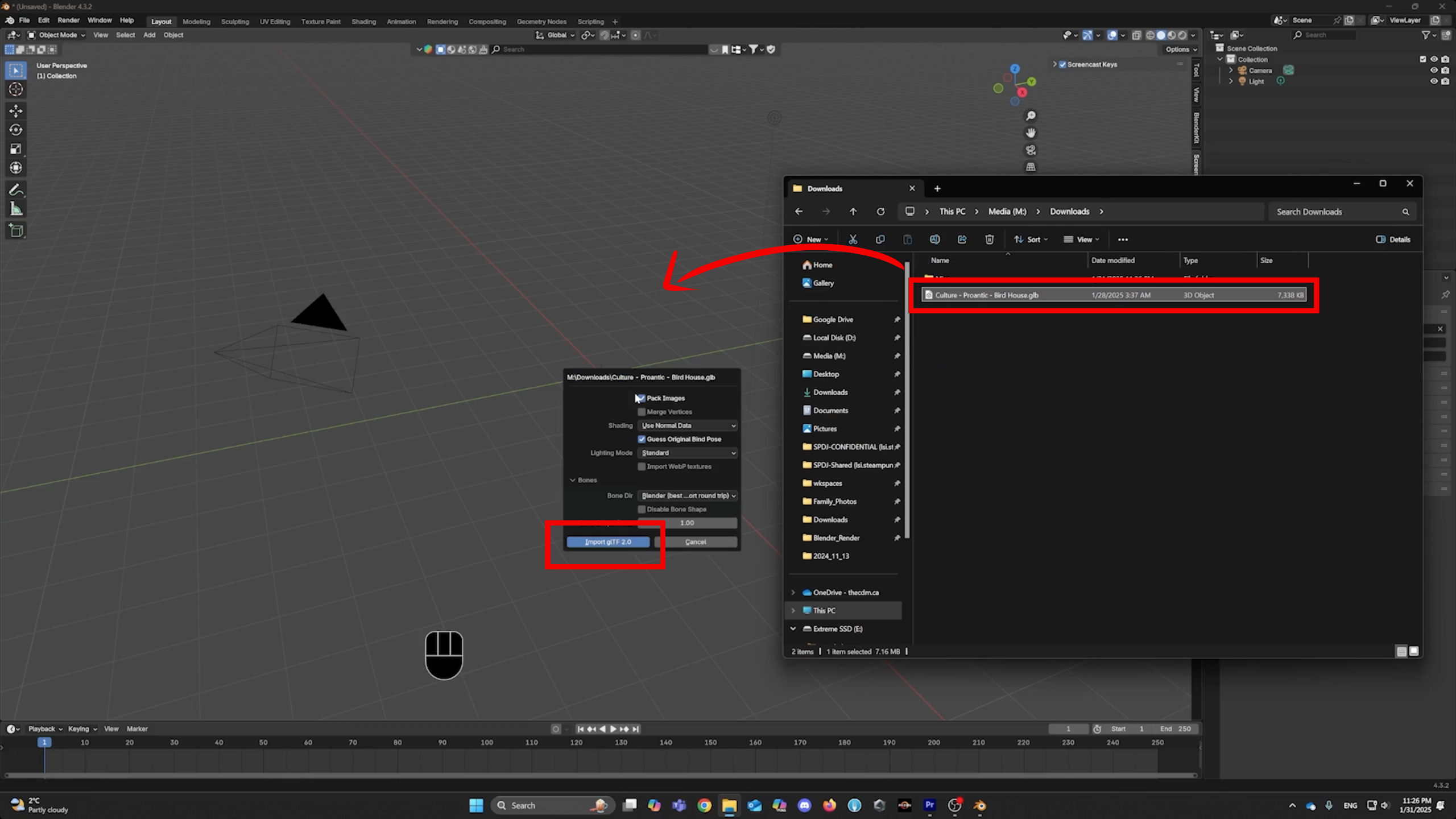

Step 2: Import the GLB file by dragging it in

Open the Blender
Delete a default cube in X key
Drag a GLB file into the viewport

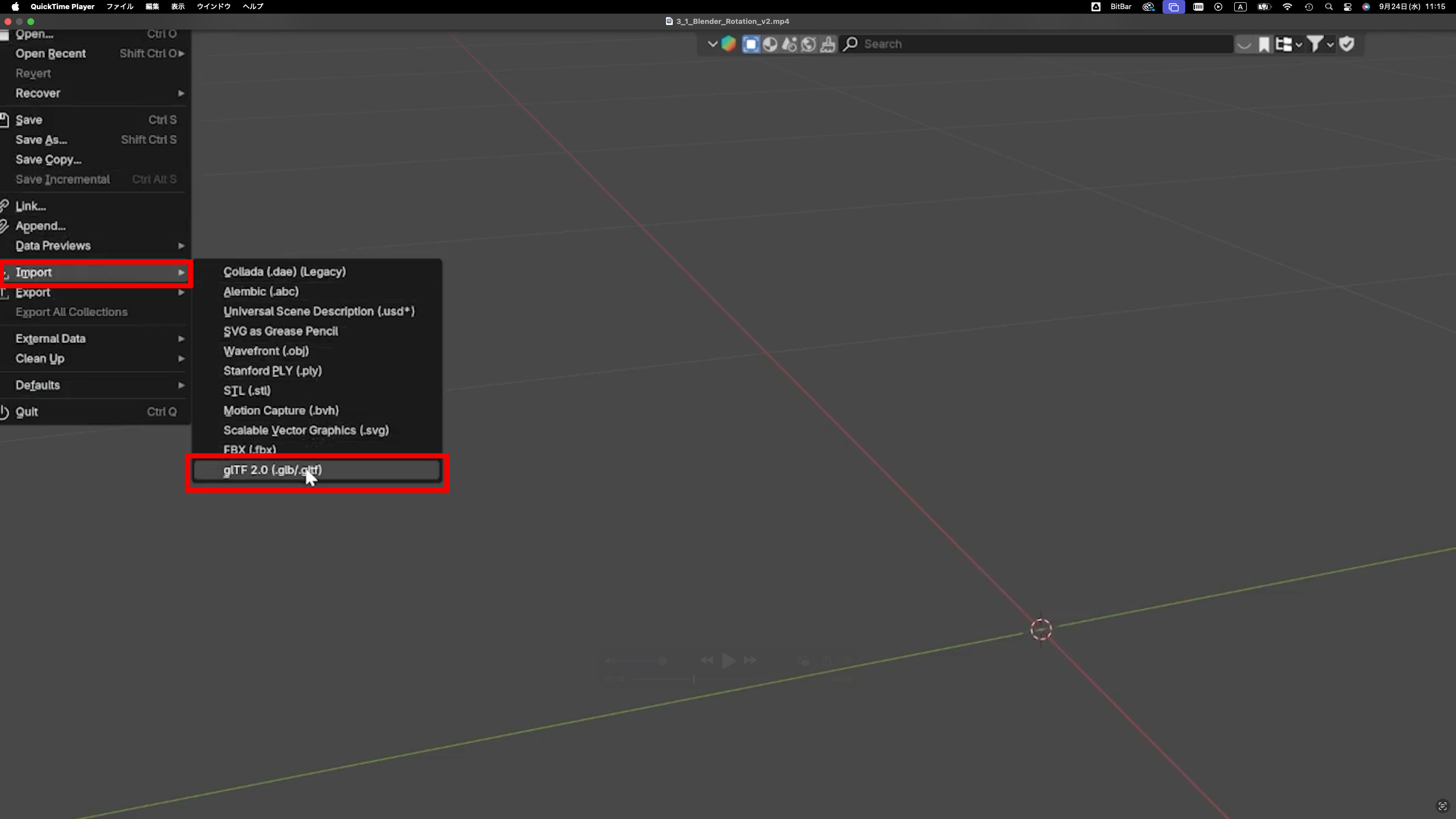

Another Option: Import the GLB File by a menu bar

Go to File < Import < glTF 2.0 (.glb / .gltf)
Select GLB file
Click 'Import glTF 2.0' button

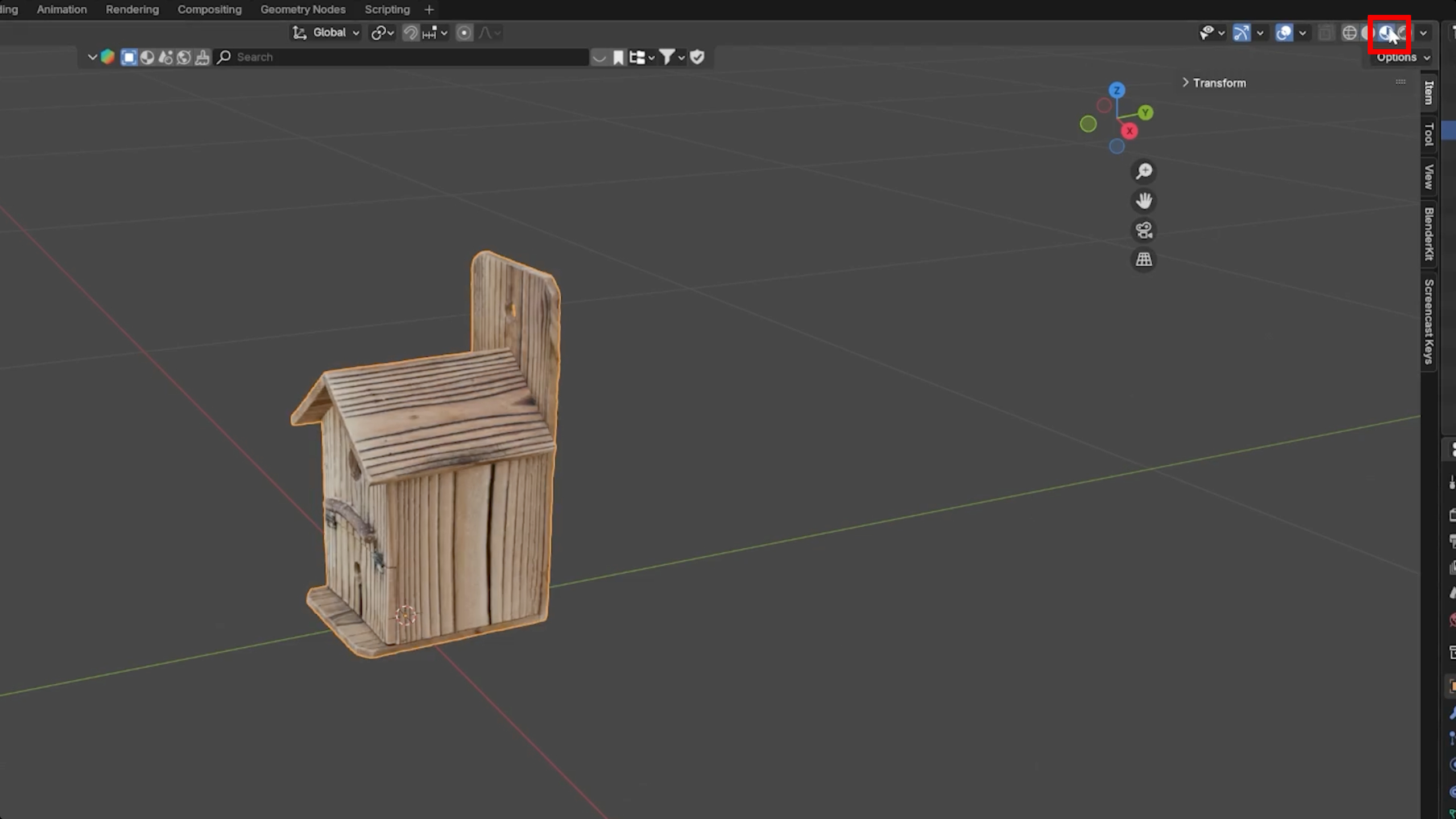

Step 3: Turn on Viewport Shading

To see a texture, go to the top options
Click the 'Viewport Shading'

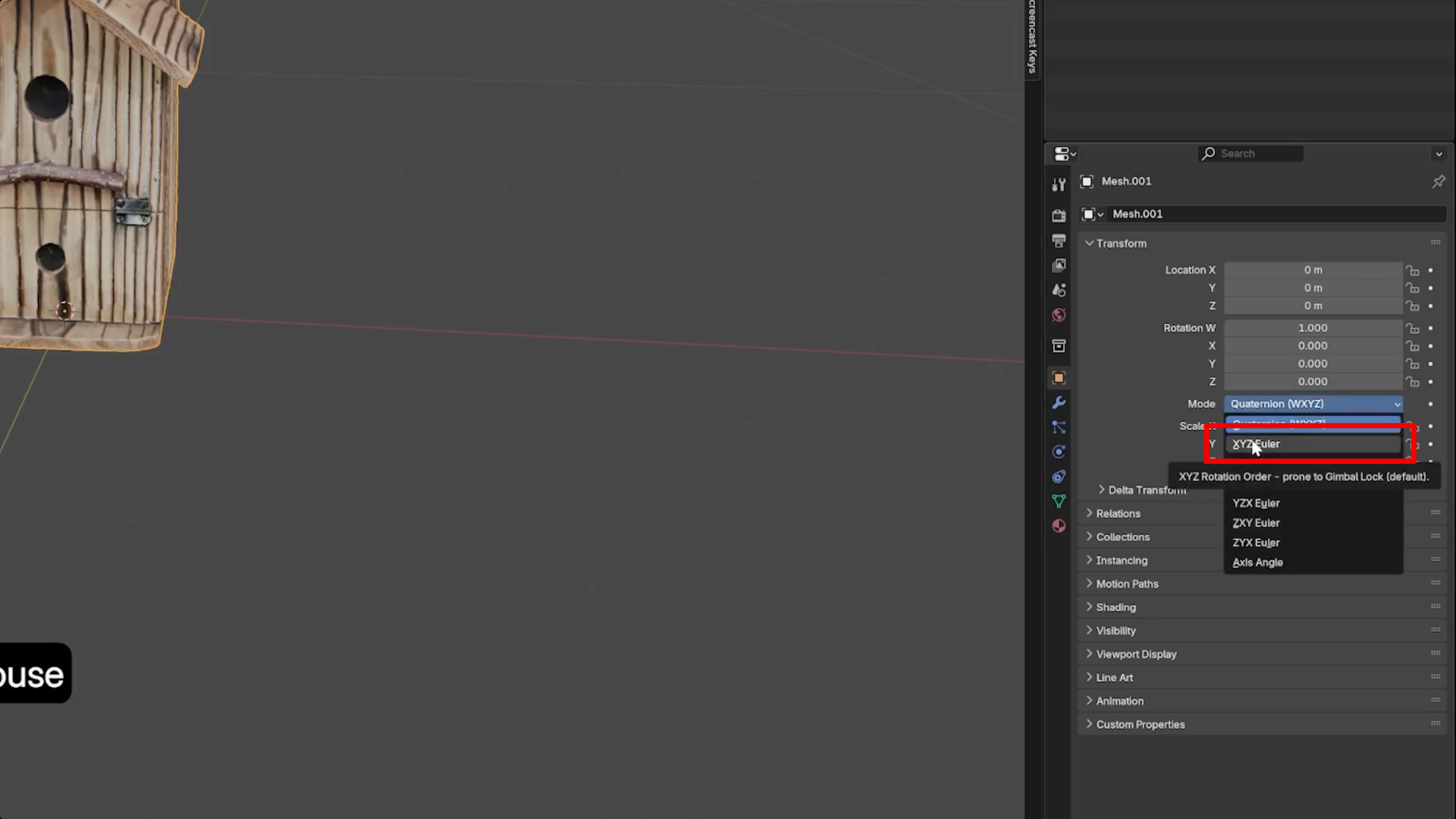

Step 4: Set the object’s Euler angles

Go to the Object Property
Change the rotation mode to XYZ Euler

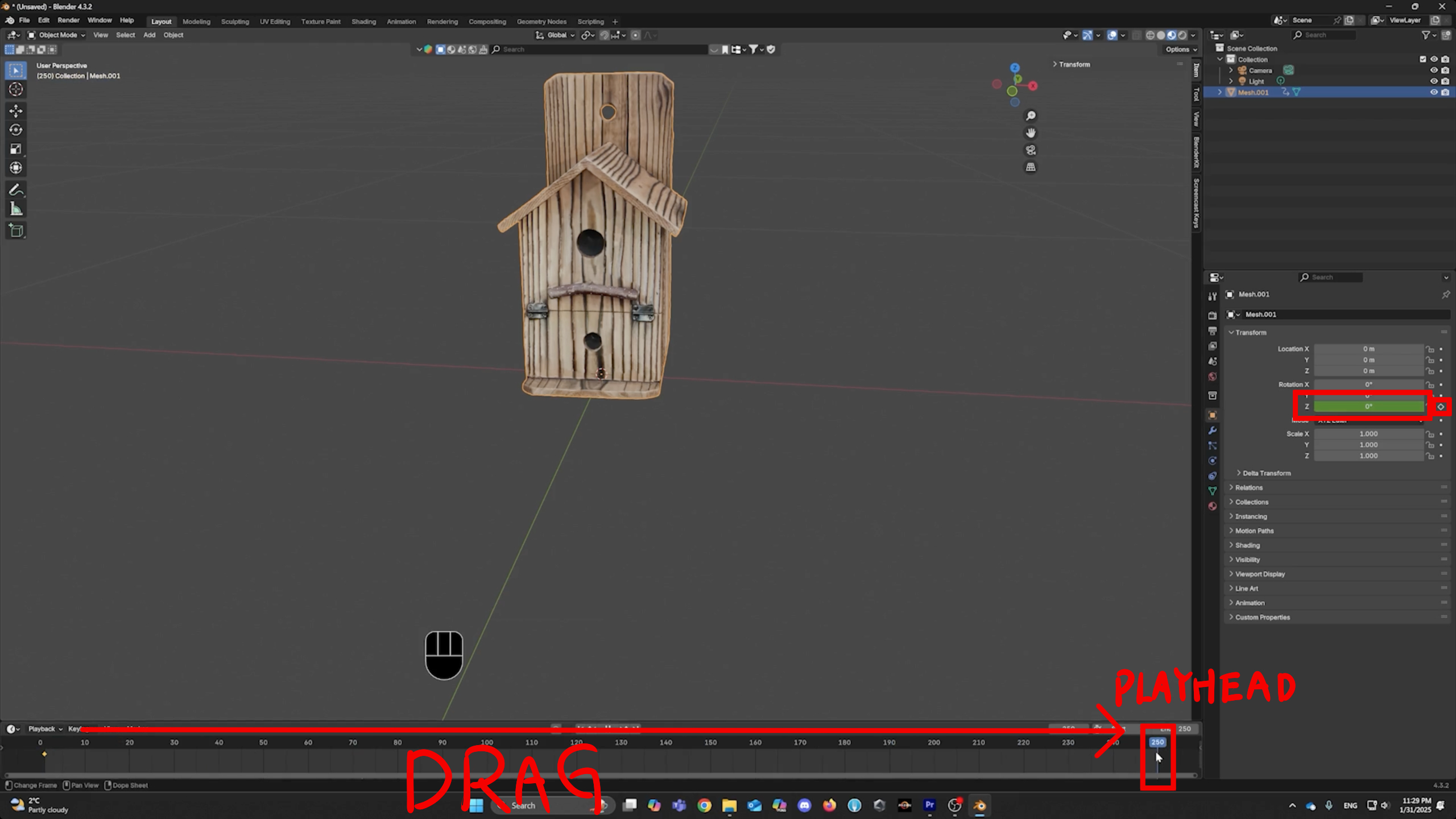

Step 5: Set the first keyframe

Go to 'Z Rotation'
Set the keyframe by clicking a little circle
Drag the playhead (The blue vertical line on the timeline) over to the final frame

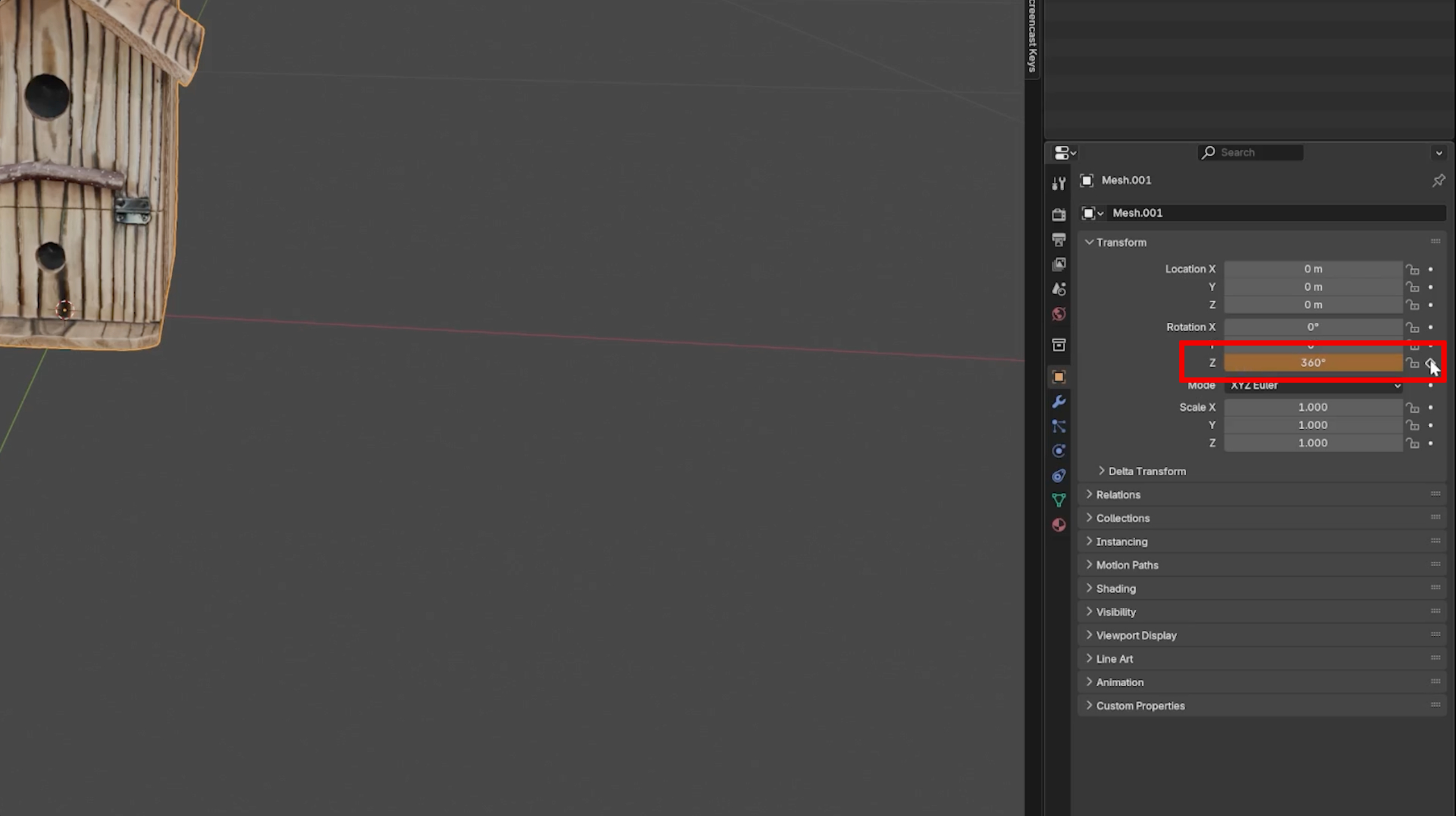

Step 6: Set the final keyframe

Set the Z value to 360°
Click the little circle again to make the final keyframe

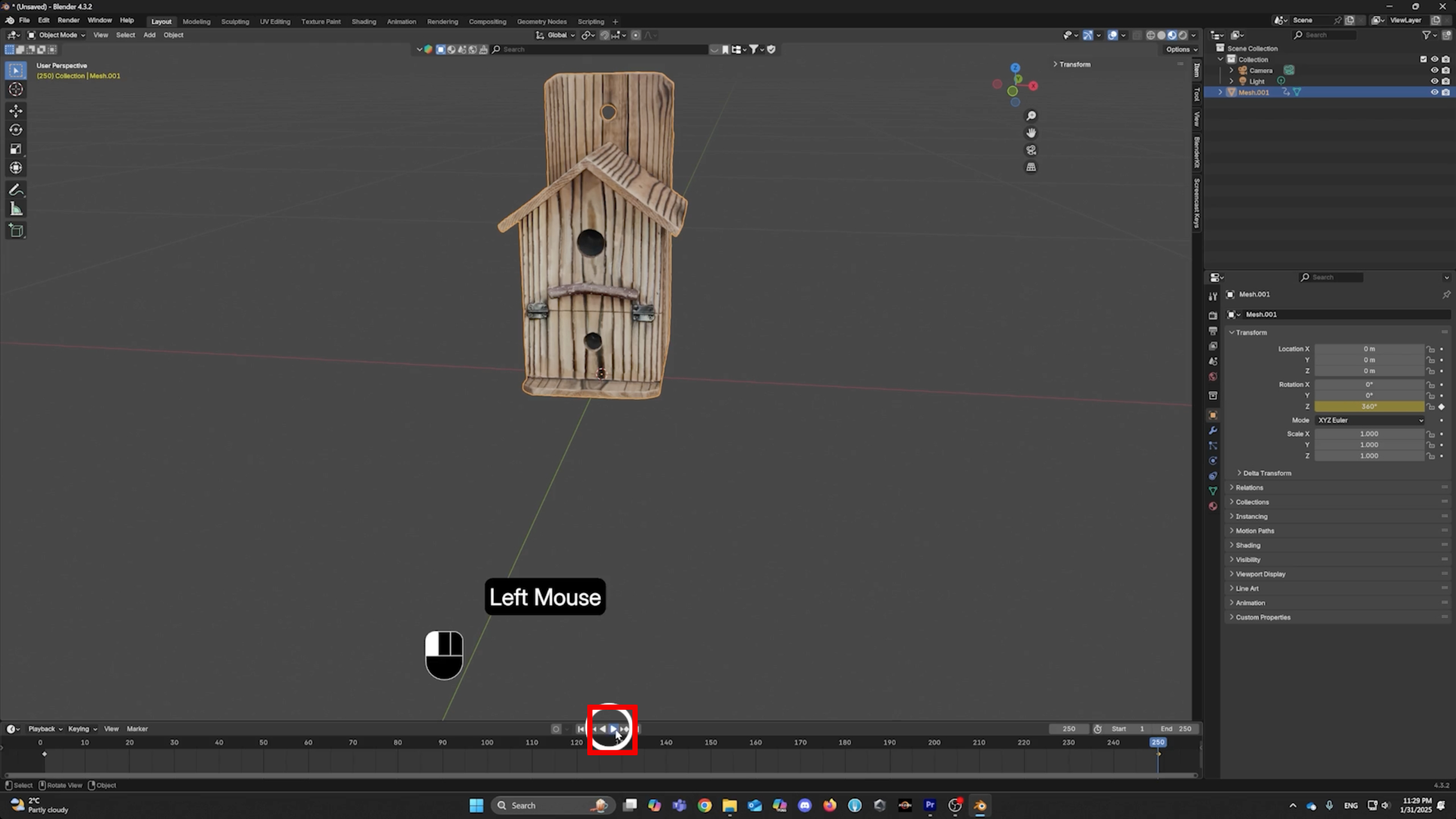

Step 7: Play to check the model animation

Click 'Play' button to check the model rotation

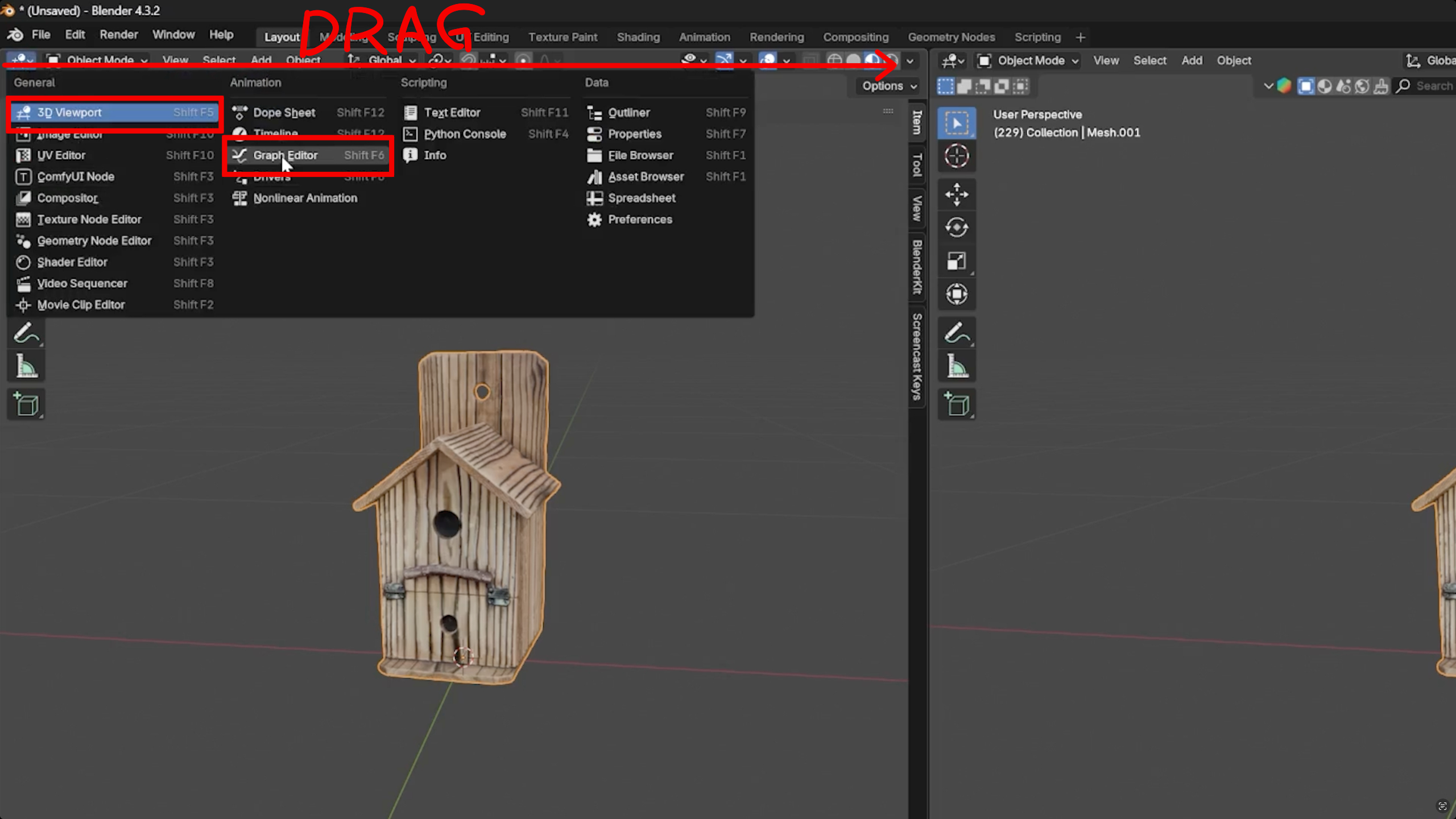

Step 8: Change to the Graph Editor

Grab the top left corner and drag in to create an anther viewport
Change the Editor Type to 'Graph Editor'

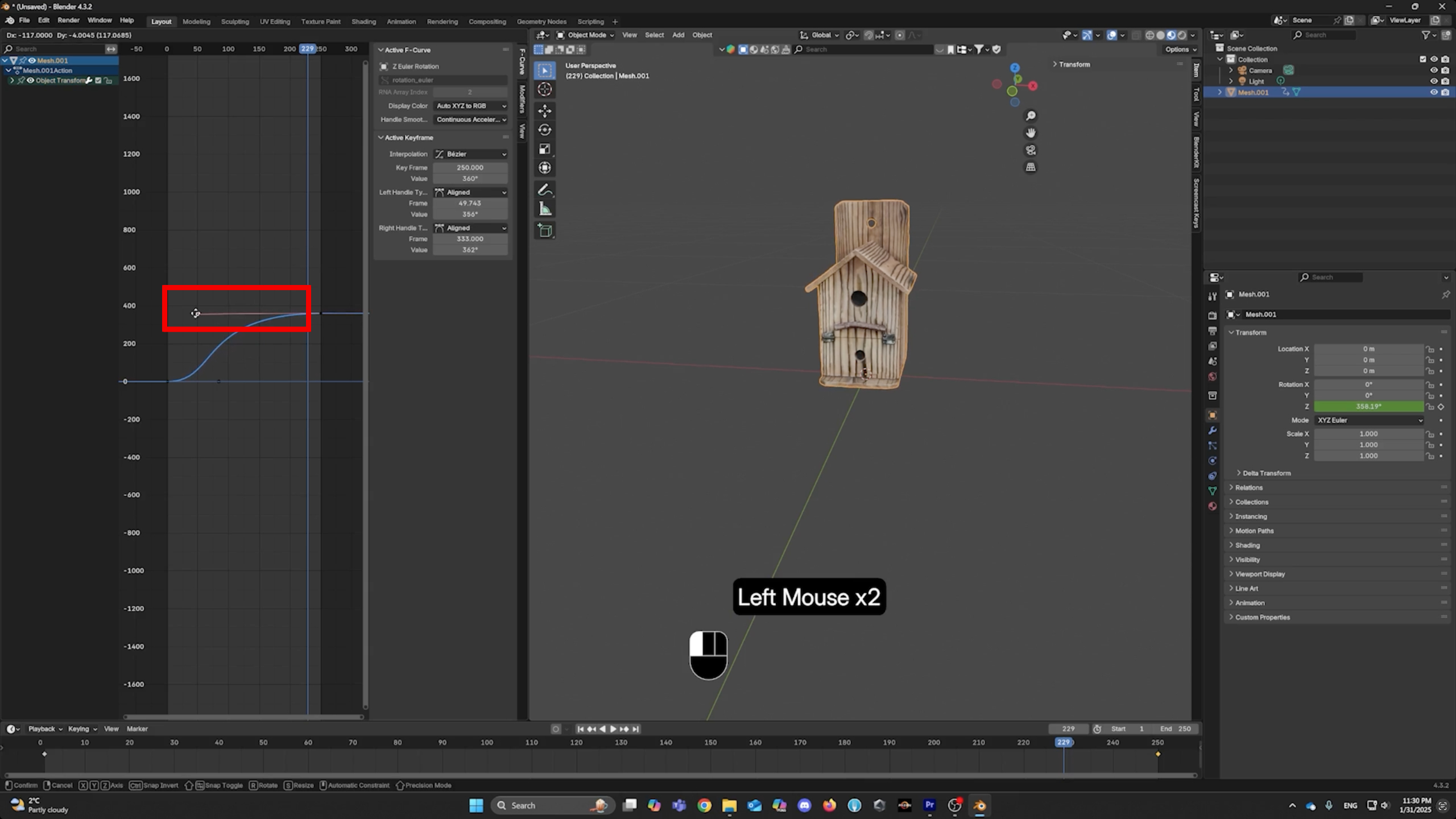

Step 9: Adjust the curve to control the animation speed

Use control + middle mouse to see the full graph
Drag the handle to adjust the animation’s start or stop speed

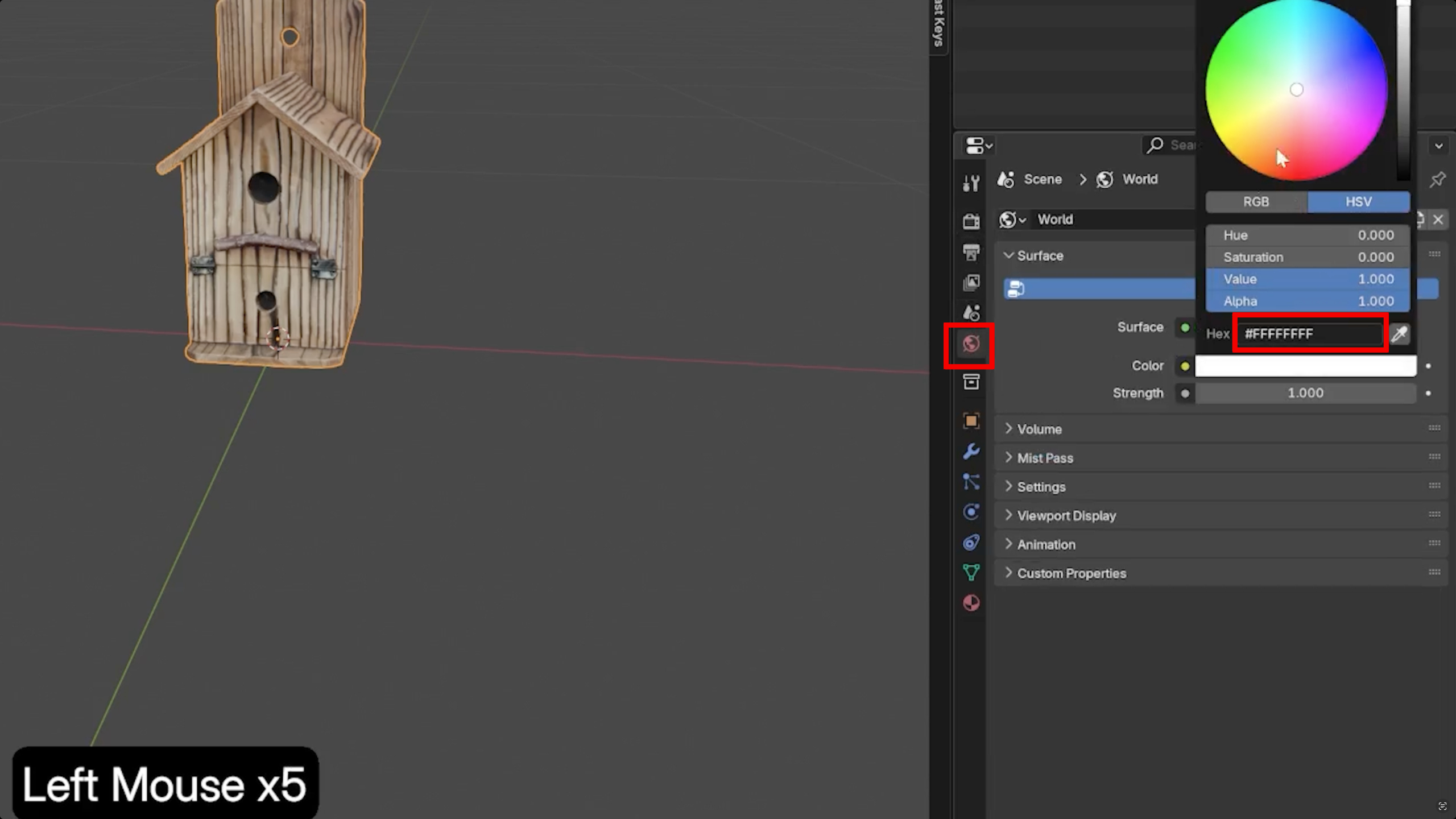

Step 10: Set up the background colour

Go to the 'World' tab
Set the background colour to white

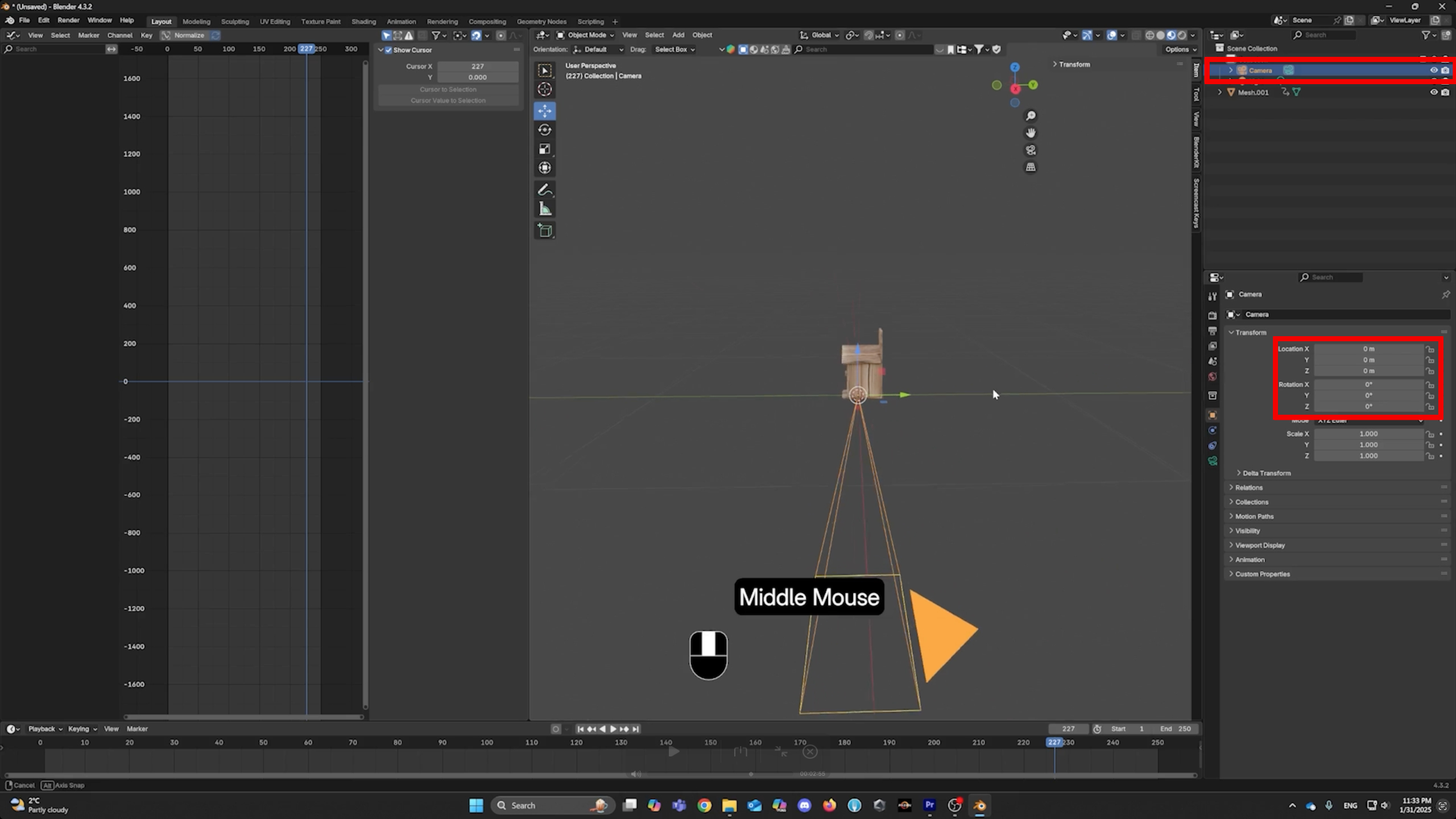

Step 11: Set up the camera

Click the 'Camera' in the 'Scene Collection'
Set the 'Location' and 'Rotation' values to 0

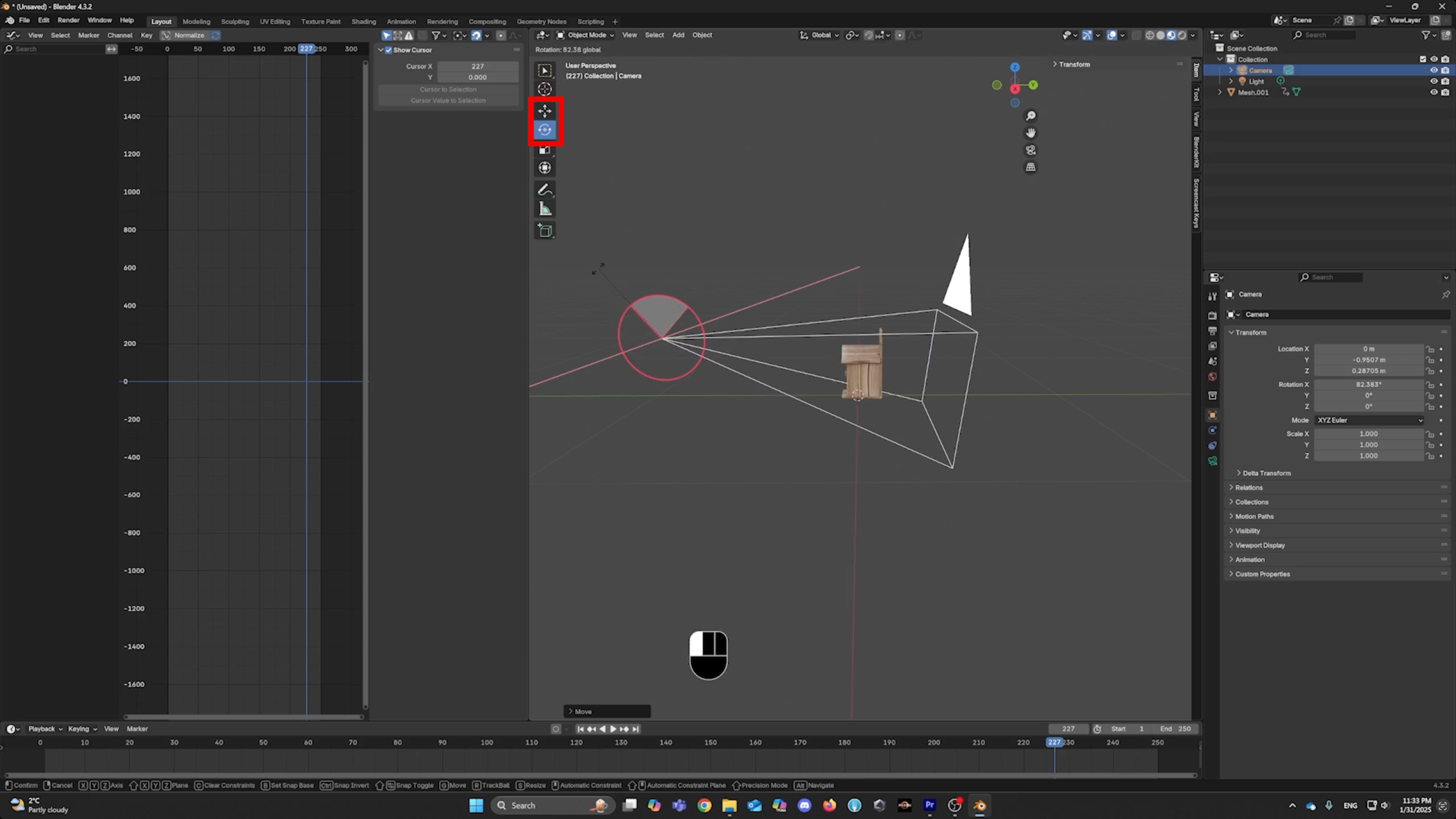

Step 12: Set up the camera position

Use the 'Transform' and 'Rotate' gizmos for camera positioning

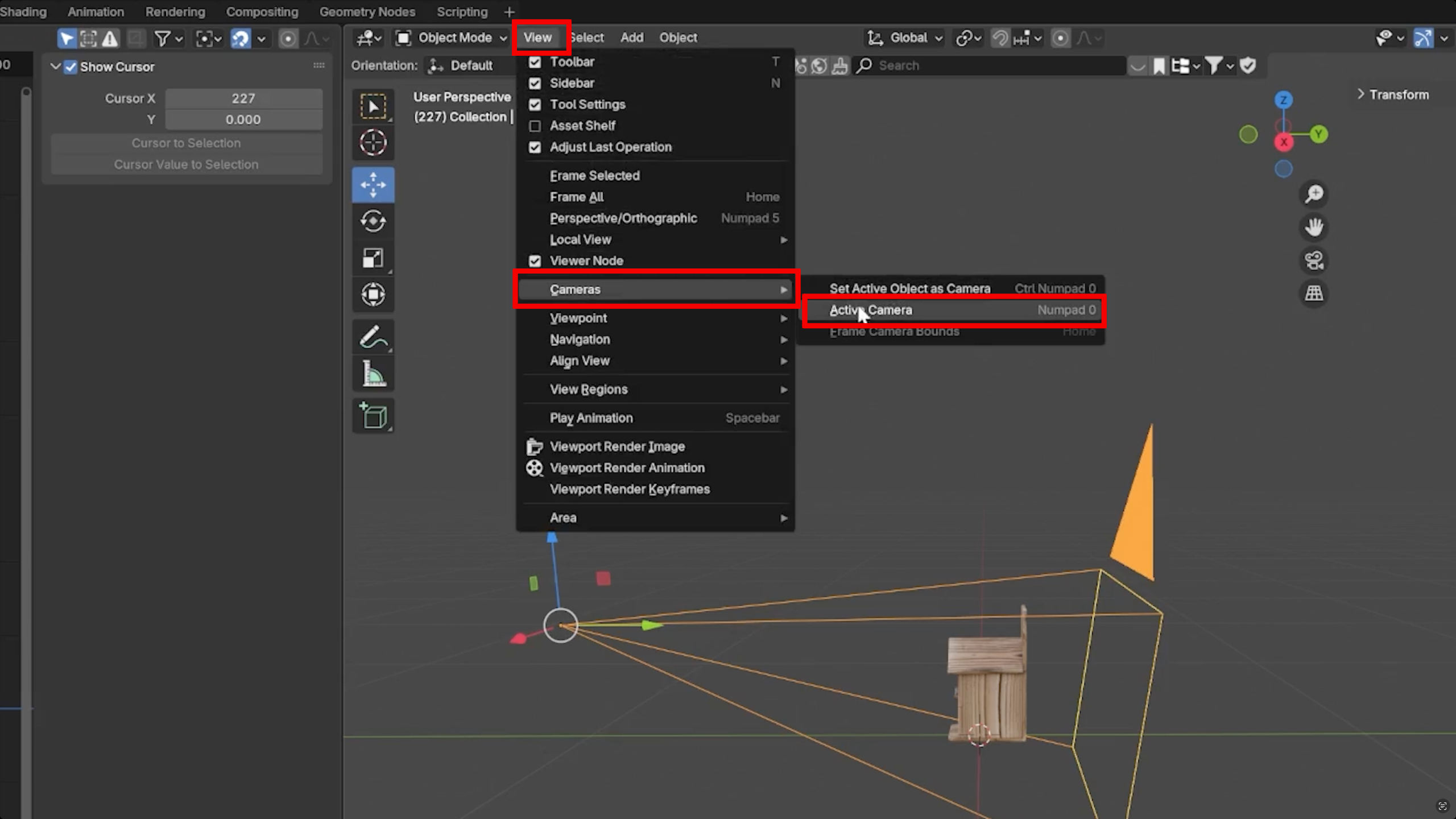

Step 13: Preview the camera position

Go to View > Cameras > Active Camera
Confirm whether the model is within the camera`s field of view

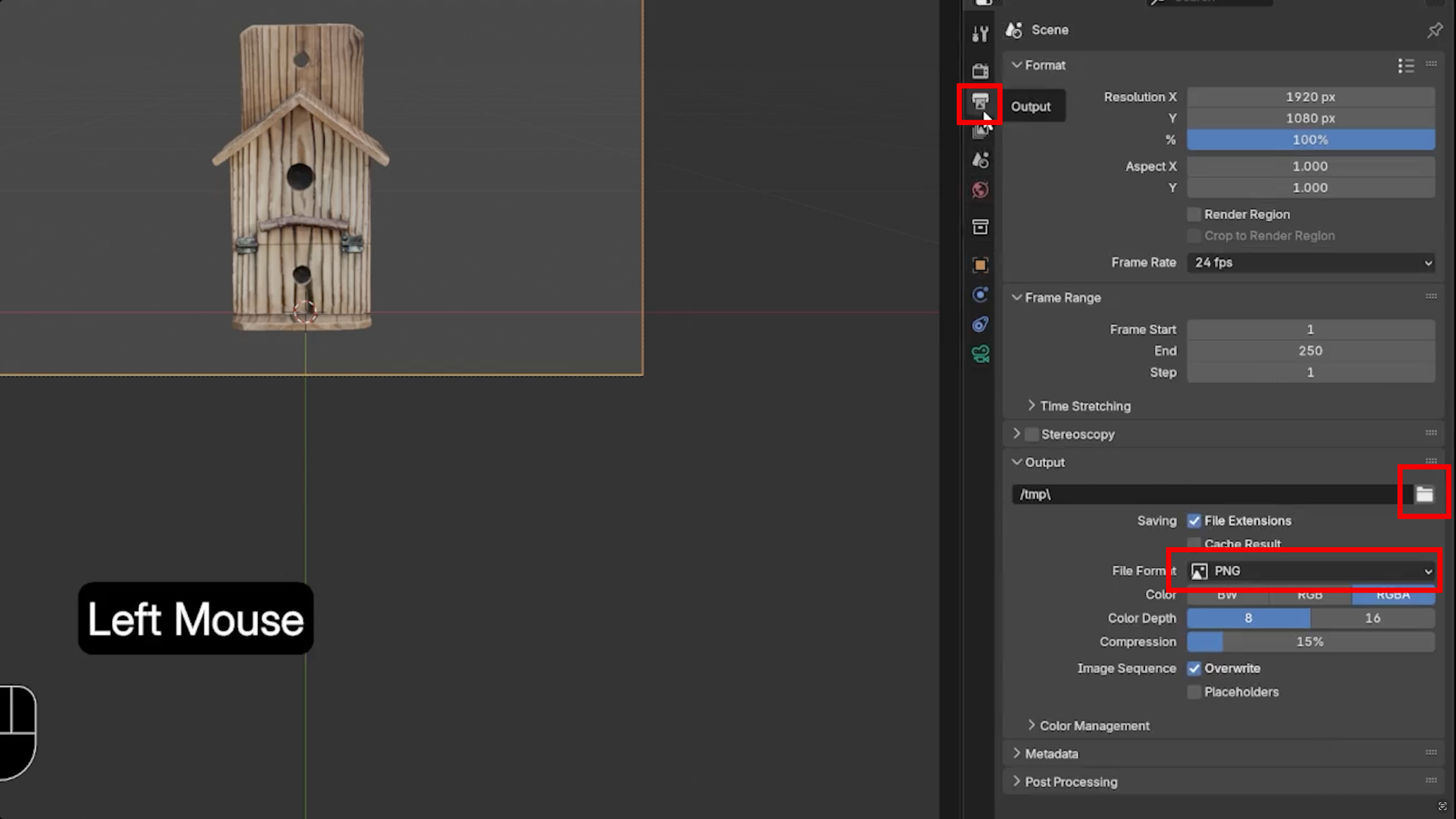

Step 14: Set up the save location and format

Go to 'Output' tab
Select the destination folder
Setup the format to 'FFmpeg' video

Step 15: Render

Go to Render > Render Animation
Take some time to render

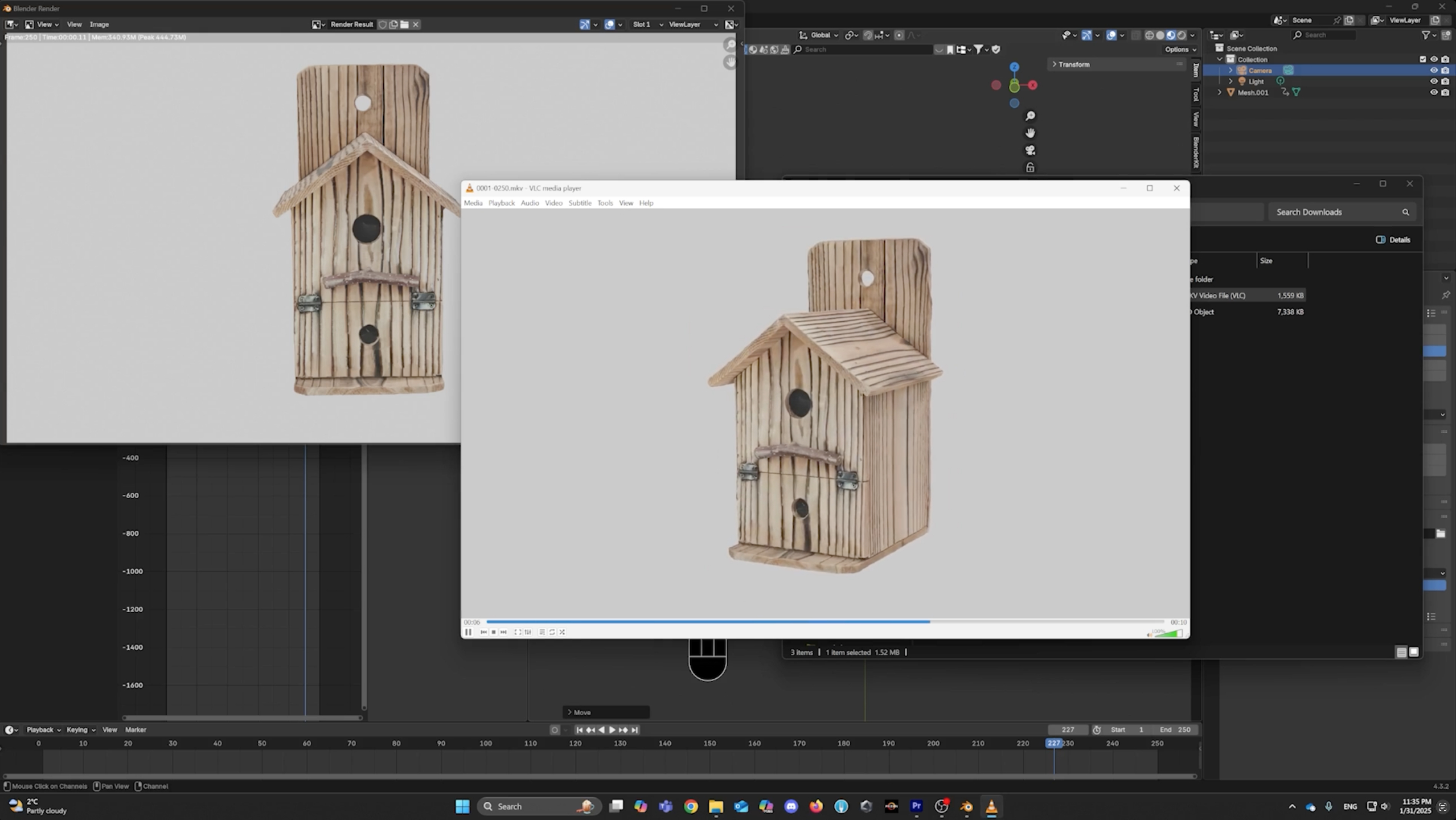

Step 16: Enjoy your rotating animation!

Video will be saved in the folder you set
Enjoy your rotating animation!

Create delightful animations!

Create 3D models easily with the Monocle Prime app, download them from the Monocle Gallery, import your Monocle scans into Blender to create fun animations!
